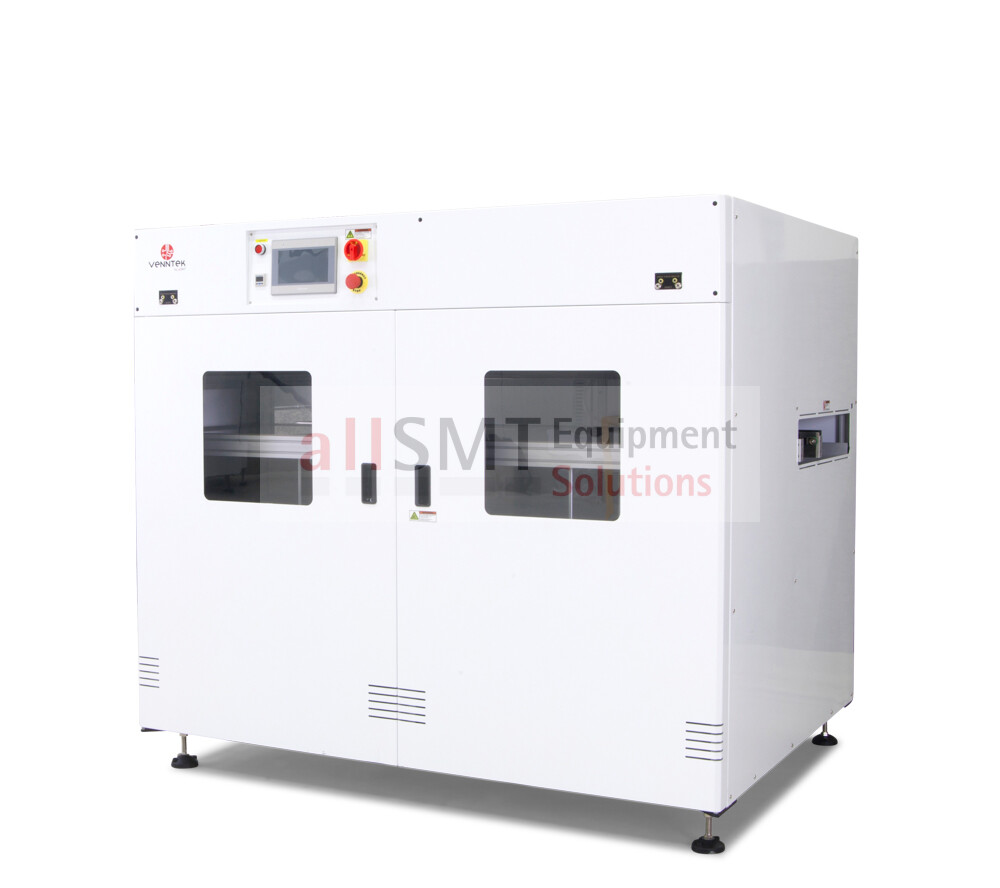

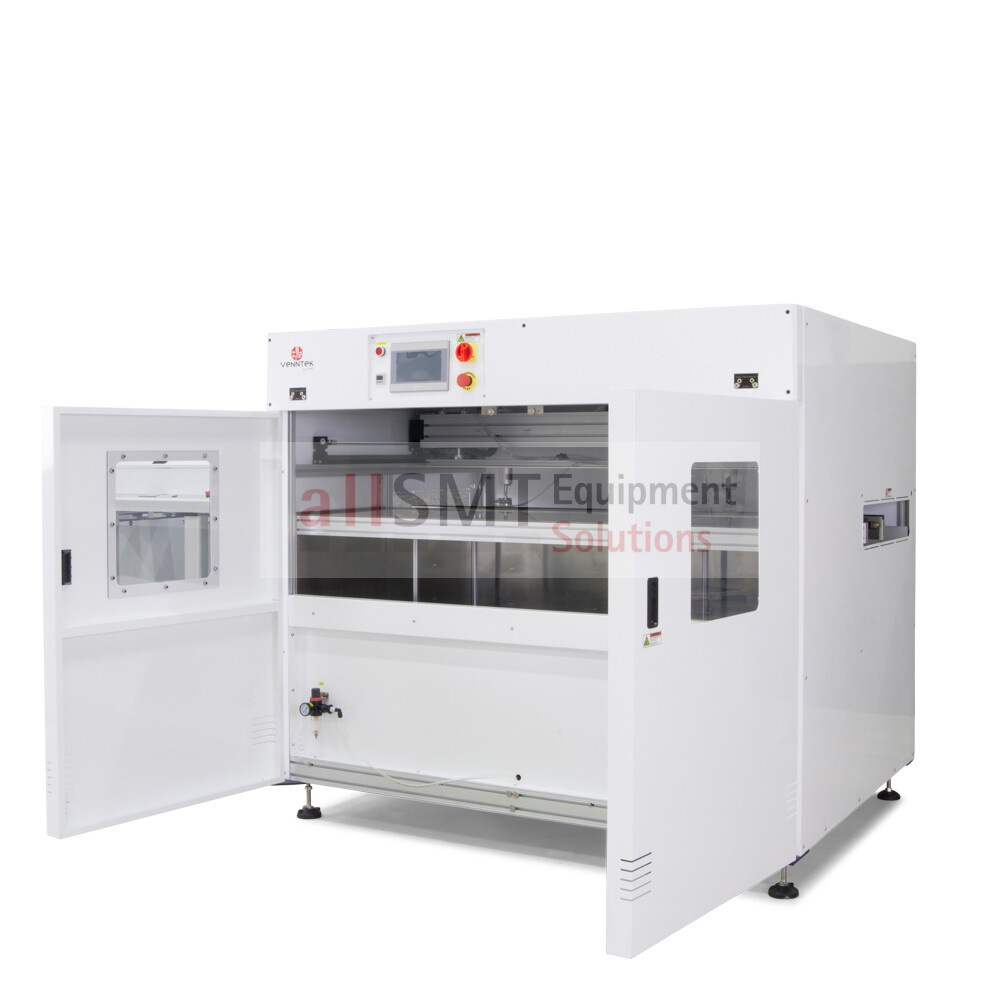

Long Board (LED) Loader 1500 mm Touchscreen/VT-Net

Part No.: VT-LED-VB-1500-014

Category: Long Board PCB Handling

The unit is designed for automatic loading of unpopulated LED
board's onto the line using suction cups. The top PCB is lifted
from stackand lowered onto belt segment.

Description & Technical data

Standard features

PLC Program control.
Large stock capacity.
Empty stack sensor.
Flexible suction cup positioning.
Convenient back door stack loading.
Towerlight display for machine status.
Smooth and parallel width adjustment.(lead screw)
By-pass mode selectable without removing PCB stack.
SMEMA compatible.

SMEMA cable.(additional)
Alternative suction cup size.
Extension for convenient stack loading.
Other options available on request.

Condition:	Demo Unit
Year of Manufacturing:	2017
Width Adjustment:	Automatic
PCB Edge Support:	10mm Flatbelt
Max PCB Width:	500mm
Max PCB Lenght:	1500mm
Option VennTek-Net:	Yes
Communication:	SMEMA
Power Supply:	AC 230V 50/60Hz 1PH
Transfer Direction:	Left to Right
Content:	1,00 pcs
