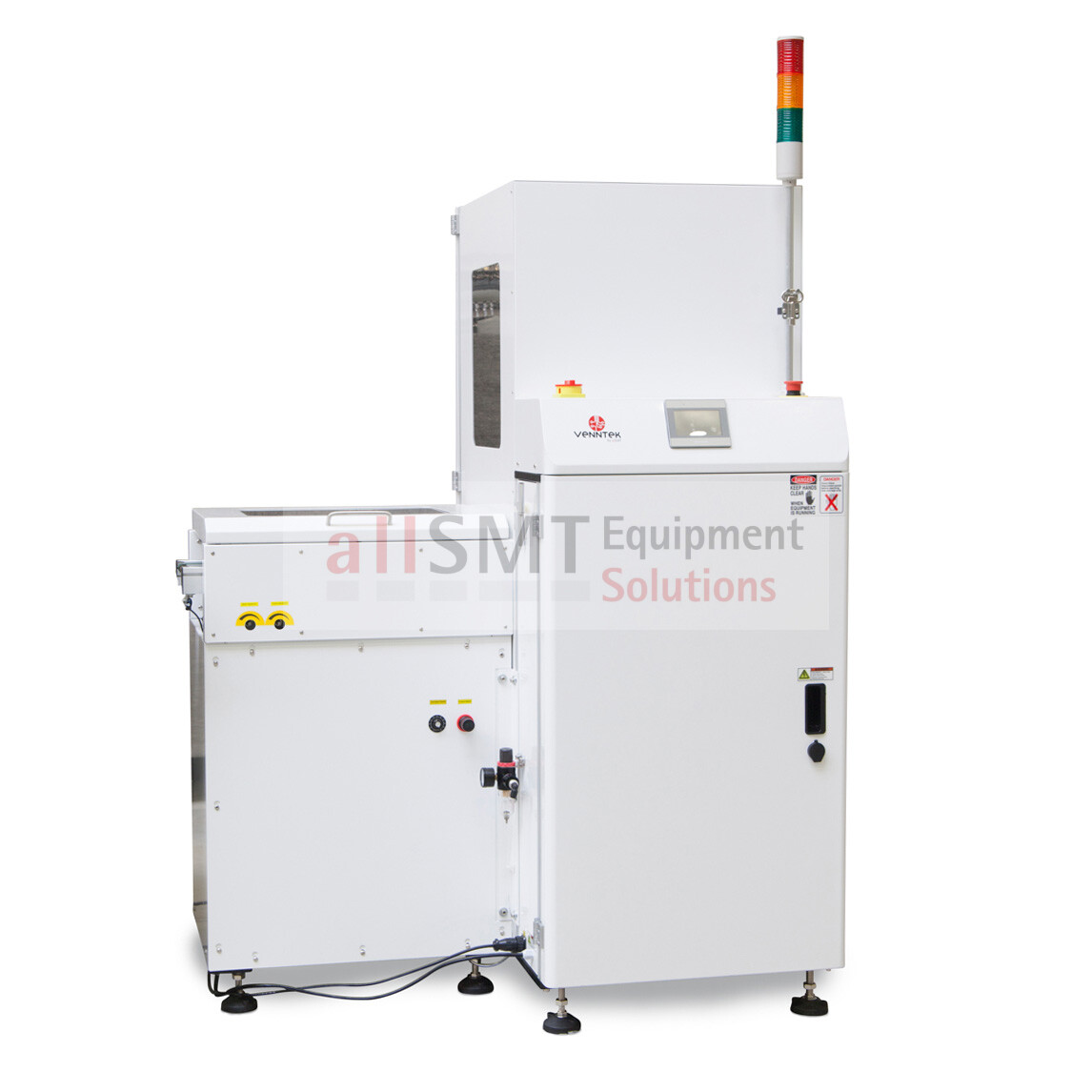

Single Magazin Unloader 330mm Flex Touchscreen/VT-Net

Part No.: VT-SME-330-Flex-024

Category: Single Magazin Unloader

The PCB's are collected from upstream machine using attached conveyor and pushed into the magazine.

Description & Technical data

Standard features

PLC Program control
Selectable pitch settings
Towerlight display for machine status
Flexible platform to suit standard magazines
Exchange magazine from the rear of the machine
Regulated pressure on attached pneumatic pusher
Pusher position adjustable to centre of the magazine
User friendly “soft touch” LED membrane control panel
Magazine is manually placed on the platform and clamped in position
SMEMA compatible.

Options

SMEMA cable(additional)
Additional magazine capacity
Touchscreen instead of button panel
Enclosed construction improve level of safety
Other options available on request.

Operation:	Touch Screen
Width Adjustment:	Automatic
PCB Edge Support:	6mm Flatbelt
Magazin Size:	355x320x563( M-Size )460x400x563( L-Size )
Max PCB Width:	330 mm
Max PCB Lenght:	445mm
Option Enclosed construction:	Yes
Option Tower Light:	Yes
Option VennTek-Net:	Yes
Option Magazine holder adjustment:	Automatic
Communication:	SMEMA
Transfer Direction:	Left to Right

Single Magazin Unloader 330mm Flex

1x Single Magazin Unloader 330mm Flex

SMEMA Cable 2 m

1x SMEMA Cable 2 m
